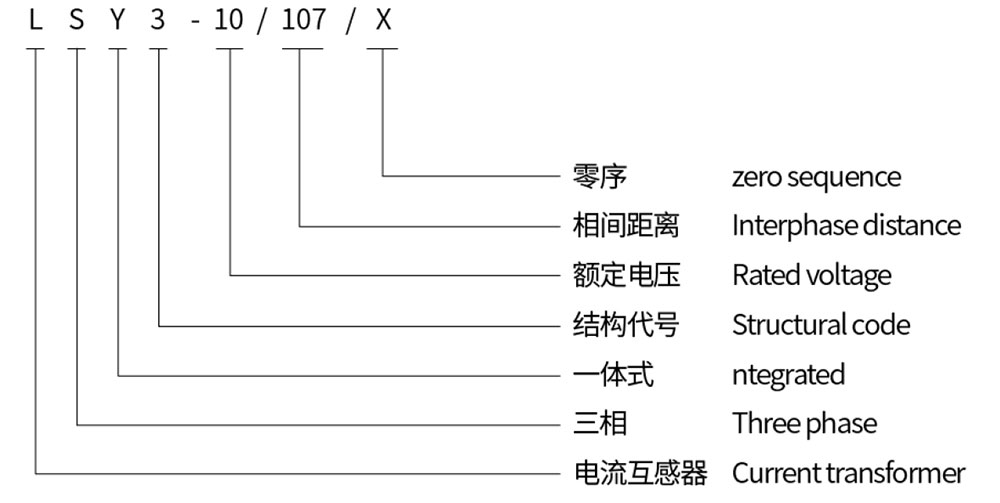

型號含義Type description
技術參數 Technical data
型號 Type | 額定一次電流 Stabilize the primary current | 準確級及額定輸出(VA) Accuracy level and rated output(VA) | 零序保護 | 準確級 | 額定輸出 | ||||
0.2s | 0.2 | 0.5 | 3 | 10P10 | |||||
LMZP-10 | 50/5 | 1 | 1 | 50/1 |
3 |
1 | |||
75/5 | 1 | 1 | 60/1 | ||||||
100/5 | 1 | 1 | 100/1 |
3 |
25 | ||||
150/5 | 1 | 1 | 150/1 | ||||||
200/5 | 2.5 | 2.5 | 2.5 | ||||||
300/5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | ||||
400/5 | 5 | 5 | 5 | 5 | 5 | ||||
500/5 | 5 | 5 | 5 | 5 | 5 | ||||
600/5 | 5 | 5 | 5 | 5 | 5 | ||||
800/5 | 10 | 10 | 10 | 10 | 10 | ||||

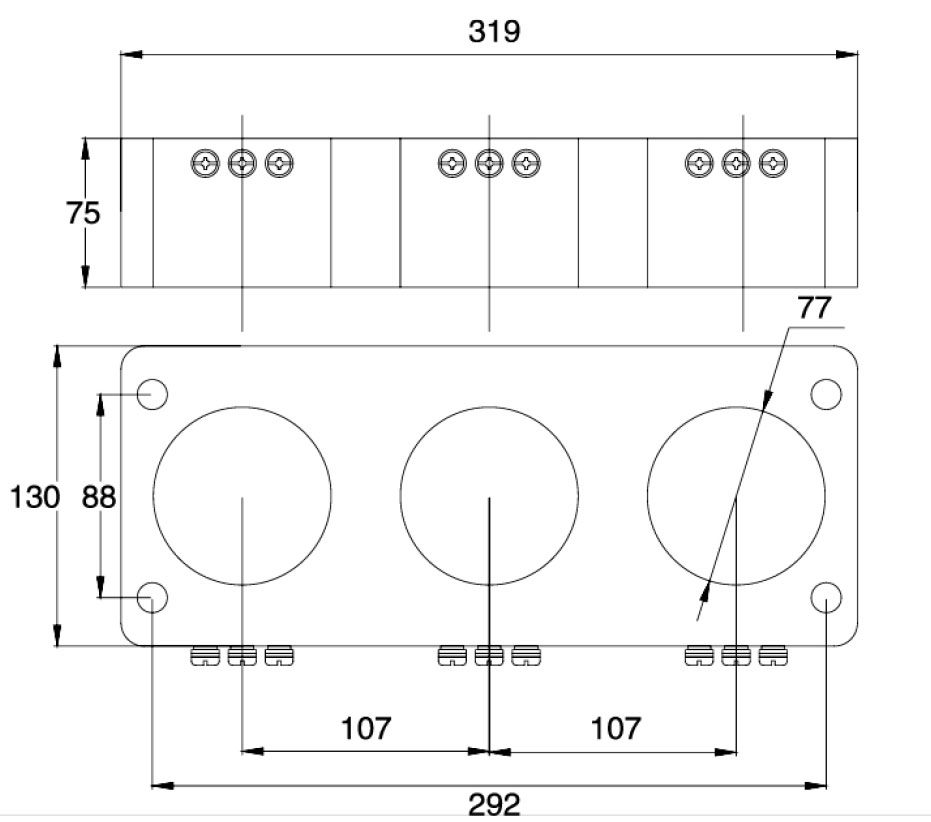

外形及安裝尺寸 Overall dimension drawing
