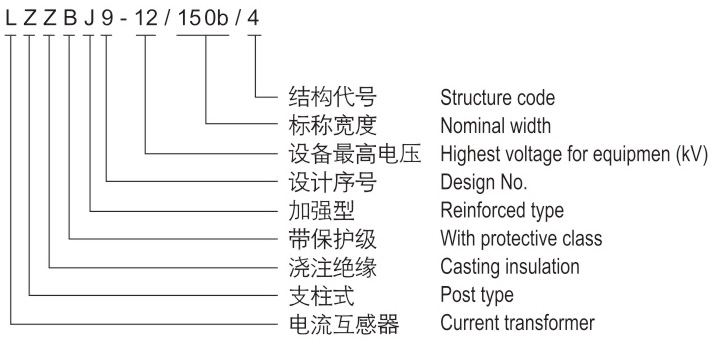

型號含義Type description
技術參數Technical data
|
額定一次電流 Rated primary current(A) |
準確級組合 Accuracy classes combination |
額定二次輸出 Rated secondary output(VA) |
短時熱電流(kA/s) Rated short-time thermal current kA/s |
動穩定電流 Rated dynamic current(kA) |
|||||
|
0.2S |
0.2 |
0.5 |
(5)10P10 |
(5)10P15 |
(5)10P20 |
||||
|
20-100 |
0.2(S)/10P 0.5/10P 0.2(S)/0.2/5P 0.2(S)/0.5/5P 0.2(S)/0.5/5P20 0.2(S)/5P10/10P15 0.5/5P10/10P20 |
10 |
10 |
10 |
10*、30 |
15*、20 |
15*、10 |
0.0611n |
0.1511n |
|
150、200 |
|||||||||
|
300、400 |
10 |
15 |
15*、30 |
20 |
15 |
||||
|
500 |
|||||||||
|
600-800 |
15*、20 |
||||||||
|
1000-1250 |
15 |
20 |
63 |
130 |
|||||
注：表中帶*數據為級組合0.2/5P10/10P15 和0.5/5P10/10P20 時的參數
Note: The data marked with* in the table are parameters for class combination 0.2/5P10/10P15 and 0.5/5P10/10P20
外形及安裝尺寸Overall dimension drawing
接線板Terminal Block
